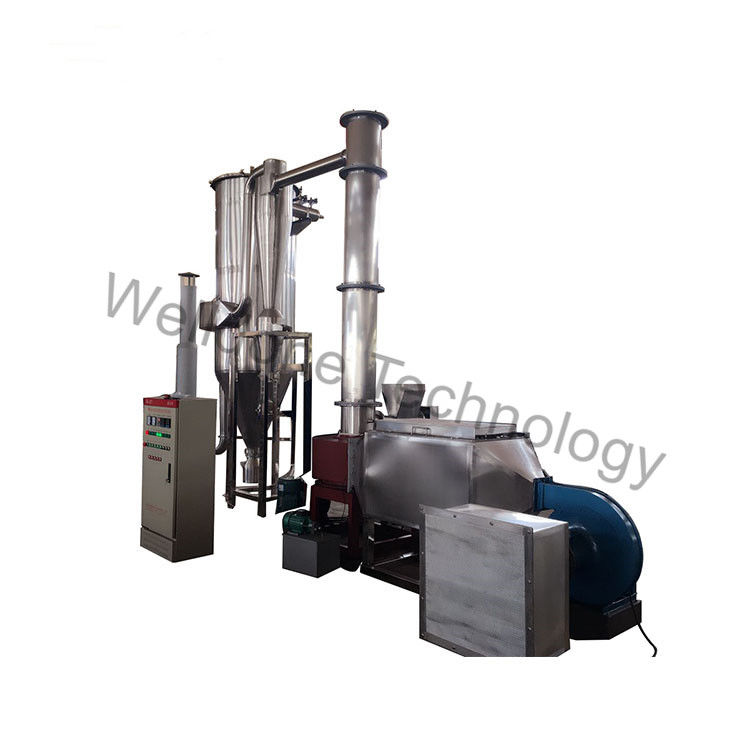

High Effient GMP Standard Flash Cure Dryer

High Effient GMP Standard Flash Cure Dryer
High Effient GMP Standard Flash Cure Dryer

Большие изображения :  High Effient GMP Standard Flash Cure Dryer

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: WELLDONE
Сертификация: CE, ISO 9001: 2008, ISO 10004
Номер модели: ССЗ- (2-20)
Оплата и доставка Условия:
Количество мин заказа: 1set
Цена: 12,000 USD to 250,000 USD
Упаковывая детали: Деревянный случай + полиэтиленовая пленка + железный каркас
Время доставки: дни 30-60Воркинг
Условия оплаты: L/C, D/A, D/P, T/T, западное соединение, MoneyGram
Поставка способности: 10Сец/Монтхс

High Effient GMP Standard Flash Cure Dryer

описание
Напряжение тока: 110В/220В/380В/415В/480В Герцы: 50Хз, 60Хз
Материал: КС/СУС304/СУС316Л/Титанюм Сила установки: 18.5КВ-255КВ
Суша температура: 120-350℃ Вес: 0.25Тон-40Тон
Ресурс топления: Пар/электрическое/газ/дизель Эффективность засыхания: 70%
Путь контролировать: Кнопка/экран касания/Ремоте Особенный дизайн: Засыхание сопротивления взрыва/низкой температуры
Загрузка Капситы: 20КГС/Х-5000КГС/Х




Description of High Effient GMP Standard Flash Cure Dryer

Rotary flash dryer is a new high efficient fluidized drying equipment that we designed for solve the static drying's low efficiency and high consumption problem. When designing the equipment, we combined the features of air stream drying and fluidized drying together. So the machine has reasonable structure and good performance, it really achieves the aim of low consumption and high efficiency of fluidizing drying.

Principle of Environmental Friendly High Efficient Flash Drying Equipments

After the heating in the heat exchanger, clean air is pumped into the air inlet, and rotated into the ring gap at the bottom of the drying chamber by a certain speed. Then in the tangential direction, the clean air enters the drying chamber, and spirals upward. At the same time, by the stepless speed-regulating feeder, material are filled into the tower quantitatively. In the drying tower, material and hot air are mixed sufficiently, and is transported to the separator together, where the finished product is collected and packaged, while the exhaust gas is further processed by the dust removing device and then is discharged.


At the bottom of the drying tower, there is the volute-shape air distributor and a stirrer, and the rotary speed of the stirrer can be regulated by the external motor. There are two functions for the stirrer:
a.Hot air from the distributing room is driven to rotate by the high speed, so the stable fluid bed is formed, which can avoid the spouting, which is caused by the partly blocking.
b.When multiple groups of blades in the stirrer are rotating by the high speed, big blocks are continuously crushed, so the particles are constantly peeled and rubbed, and the heat-exchanging surface is constantly updated, so the drying rate is increased.



In addition, the interval between the blade in the stirrer and the dryer's wall is very small, when the stirrer is rotating, the material which are pasted on the wall can be cleaned in time. There is the cooling jacket for the tower's wall, and the quality of those heat-sensitive materials can be ensured completely. With the volute-type air distributor, from the bottom ring, the hot air evenly rise in a spiral shape, and the reasonable wind speed ensures that material can be fluidized and dried well.

In the central part of the drying tower, the quantitative feeder keeps the feeding continuously. At the same time, after the crushing, material are blown upward by the high-speed hot wind, so a relatively stable fluidized layer is formed in the drying chamber. Between material and the hot air, the heat/ water exchanging is rapid and sufficient, and most of the moisture is evaporated at this process. For those particles, with high water content and smaller specific-surface area, because their gravity is bigger than the buoyancy, when they are falling in the drying room, are continuously dried, and because of the crushing & the impact from the high-speed air flow, are further crushed and dried, as a result their gravity is less than their buoyancy, and particles begin to rise. At the drying room's upper part, there is a ring-type classifier. When particles are rising along with the air flow, because of the centrifugal force, the turning radius of those big particles (Moisture is not qualified) becomes bigger and bigger, when it's bigger than the classifier's radius, will be blocked in the drying room, and have the further crushing, until they are qualified. While those qualified particles will flow out along the air flow, and are collected.



High Effient GMP Standard Flash Cure Dryer 1
High Effient GMP Standard Flash Cure Dryer 2

High Effient GMP Standard Flash Cure Dryer 3
High Effient GMP Standard Flash Cure Dryer 4




Technical Parameters of Environmental Friendly High Efficient Flash Drying Equipments
High Effient GMP Standard Flash Cure Dryer 5

After Sell Service

High Effient GMP Standard Flash Cure Dryer 6


Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell




Packing & Delivery

High Effient GMP Standard Flash Cure Dryer 7
High Effient GMP Standard Flash Cure Dryer 8
High Effient GMP Standard Flash Cure Dryer 9
High Effient GMP Standard Flash Cure Dryer 10
High Effient GMP Standard Flash Cure Dryer 11
