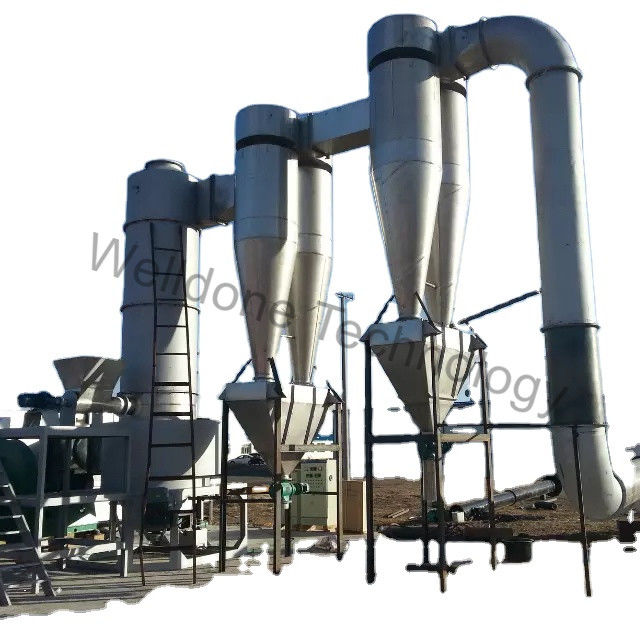

Automatic Functioning GMP standard Spin Flash Dryer



Description of Automatic Functioning GMP Standard Spin Flash Dryer

XSG series rotary flash drying machine is my factory in the introduction, absorption, on the basis of foreign advanced technology, successfully developed a new type of drying equipment. This advanced technology, reasonable design, compact structure, wide scope of application, large production capacity, products of good quality and high efficiency, energy saving, in a dry equipment, crushing, sieving one-time completed, eliminate the pollution of the environment, the whole machine performance reached the international advanced technology level.

Principle of Automatic Functioning GMP Standard Spin Flash Dryer

Hot air by the inlet pipe to the suitable spouted velocity from the bottom of the dryer into the mixing crushed drying chamber, the material produce strong shearing, blowing floating and rotating effect, so the material by centrifuge, shearing, collision, friction and particles, and to strengthen the heat transfer and mass transfer. At the bottom of the dryer is bigger than the wet particle mass under the action of stirrer were mechanical crushing, with low moisture content, granularity of smaller particles entrained by the rotating flow increase, rising further in the process of drying. Because of gas-solid two phase rotating flow, solid phase of inertia is greater than the gas phase and two phases of gas in the relative velocity is larger, strengthen two heat transfer and mass transfer, so the machine produce high strength.

Features of Automatic Functioning GMP Standard Spin Flash Dryer

Variety of feeding device for selection, continuous stable feeding, process won't produce bridge phenomenon in the middle.
"At the bottom of the dryer set special cooling device, avoids the production material in the bottom of drier deterioration phenomenon.
Second-ranking special pressure seal and bearing cooling device, effectively prolong the service life of transmission parts.
Low special air distributing device, reduce the resistance of the equipment, and provide the effective of air dryer.
There are rotation flow pieces and low drying chamber fitted with grading ring, adjustable fineness and raw material. (such as calcium carbonate water regulator to 0.1% or less)
Low compared with other drying method, which can effectively increase the material proportion.
Low dry indoor circumferential gas velocity is high, the material stay time is short, effective prevent deterioration phenomenon of wall material viscosity and heat sensitive material, to achieve efficient, fast, small equipment, mass production.










Technical Parameters of Automatic Functioning GMP Standard Spin Flash Dryer



After Sell Service

Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
